Our extensive range of rackmount storage server solutions provides exceptionally high storage density while leveraging high-efficiency
power to maximize performance-per-watt savings to reduce TCO.

The product line includes 1U, 2U, and 4U form factors, with each server capable of supporting up to 7 PCI expansion slots and wide
line of multiple processors configurations. Offering up to 93% power efficiency, cooling redundancy, power redundancy, hot-swappable
drive bays and fans, our storage servers are designed to meet the requirements of today's sophisticated enterprise data centers and
high performance applications with new levels of storage performance, scalability and reliability. Direct attached HDD backplane and
expander backplane are available for application-specific solution optimization.

Embedded with the Windows Storage Server 2008 R2 operating system to provide a platform for network-attached storage (NAS)
appliances and is optimized to deliver a better file serving experience.

Our Storage Server solutions provide advanced storage solutions for small businesses to enterprise organizations. It includes storage
technologies such as file deduplication, and an iSCSI software target for unified file services and block I/O storage.


High Efficiency Power Supplies, High Capacity SAS/SATA, 100%  Cooling Redundancy & Easy to Deploy

The product line includes 2U, 3U, and 4U form factors,  with each server capable of supporting up to 7 PCI expansion slots and wide  line of DP and UP motherboards. Offering up to 93% power efficiency, cooling  redundancy, power redundancy, hot-swappable drive bays and fans, storage  servers are designed to meet the requirements of today's sophisticated  enterprise data centers and high performance applications with new levels of  storage performance, scalability and reliability. Direct attached HDD  backplane and expander backplane are available for application-specific  solution optimization.






280Plus PlatinumU/12 Bay  Expandable Storage Server
 • Dual Intel® Xeon® processor E5-2600 family; Socket R (LGA 2011)
 • 12 Hot-swap 3.5" SAS2 (with LSI expander) / SATA3 HDD Bays
 • IT mode/HBA with support up to 122 Drives
 • 16 DIMMs support up to 512GB DDR3 1600MHz*  reg. ECC memory
 • 5x PCI-E 3.0 (x8) PCI-E 3.0 expansion slots
 • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
 • System management: Built-in Server management tool
(IPMI 2.0, KVM/media over LAN) with dedicated LAN port
 • 3 heavy duty fans w/ optimal fan speed control
 • 920W Redundant Platinum Level Power Supplies








280Plus PlatinumU Expandable  Storage Server
• Dual Intel® Xeon® processor E5-2600 family; Socket R (LGA 2011)
 • 24 Hot-swap 2.5" SAS2 (with LSI expander) / SATA3 HDD Bays;
SATA DOM support
 • Hardware RAID controller & JBOD Expansion;
RAID 0, 1, 5, 6, 10, 50, 60
 • 24 DIMMs support up to 768GB DDR3 1600MHz*  reg. ECC memory
 • 3 (x16) PCI-E 3.0 and 1 (x8) PCI-E 3.0 expansion slots
 • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
 • System management: Built-in Server management tool
(IPMI 2.0, KVM/media over LAN) with dedicated LAN port
 • 3 heavy duty fans w/ optimal fan speed control
 • 920W Redundant Platinum Level Power Supplies








380Plus PlatinumU Expandable  Storage Server
 • Dual Intel® Xeon® processor E5-2600 family; Socket R (LGA 2011)
 • 16 Hot-swap 3.5" SAS2 (with LSI expander) / SATA3 HDD Bays;
 • IT mode/HBA with support up to 122 Drives
 • 16 DIMMs support up to 512GB DDR3 1600MHz*  reg. ECC memory
 • 5x PCI-E 3.0 (x8) PCI-E 3.0 expansion slots
 • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
 • System management: Built-in Server management tool
(IPMI 2.0, KVM/media over LAN) with dedicated LAN port
 • 3 heavy duty fans w/ optimal fan speed control
 • 920W Redundant Platinum Level Power Supplies








3U80Plus Platinum Resource  Optimized Storage Server
 • Dual Intel® Xeon® processor E5-2600 family; Socket R (LGA 2011)
 • 16 Hot-swap 3.5" SAS2 (with LSI expander) / SATA3 HDD Bays;
Internal Drive Bracket supports 1x 3.5" or 2x 2.5"  drives
 • Hardware RAID controller & JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60
 • 24 DIMMs support up to 768GB DDR3 1600MHz*  reg. ECC memory
 • 3 (x16) PCI-E 3.0 and 1 (x8) PCI-E 3.0 expansion slots
 • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
 • System management: Built-in Server management tool
(IPMI 2.0, KVM/media over LAN) with dedicated LAN port
 • 3 heavy duty fans w/ optimal fan speed control
 • 920W Redundant Platinum Level Power Supplies








480Plus PlatinumU Expandable  Storage Server
 • Dual Intel® Xeon® processor E5-2600 family; Socket R (LGA 2011)
 • 24 Hot-swap 3.5" SAS2 (with LSI expander) / SATA3 HDD Bays
 • IT mode/HBA with support up to 122 Drives
 • 16 DIMMs support up to 512GB DDR3 1600MHz*  reg. ECC memory
 • 5x PCI-E 3.0 (x8) PCI-E 3.0 expansion slots
 • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
 • System management: Built-in Server management tool
(IPMI 2.0, KVM/media over LAN) with dedicated LAN port
 • 3 heavy duty fans w/ optimal fan speed control
 • 920W Redundant Platinum Level Power Supplies








480Plus PlatinumU  High-density Storage Server
 • Dual Intel® Xeon® processor E5-2600 family; Socket R (LGA 2011)
 • 24 Hot-swap 3.5" SAS2 (with LSI expander) / SATA3 HDD Bays;
Internal Drive Bracket supports 1x 3.5" or 2x 2.5"  drives
 • Hardware RAID controller & JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60
 • 24 DIMMs support up to 768GB DDR3 1600MHz*  reg. ECC memory
 • 3 (x16) PCI-E 3.0 and 1 (x8) PCI-E 3.0 expansion slots
 • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
 • System management: Built-in Server management tool
(IPMI 2.0, KVM/media over LAN) with dedicated LAN port
 • 3 heavy duty fans w/ optimal fan speed control
 • 920W Redundant Platinum Level Power Supplies




 24 front + 12 rear HDDs


80Plus Platinum
4U Double  Sided Storage Server
 • Dual Intel® Xeon® processor E5-2600 family; Socket R (LGA 2011)
 • 36 Hot-swap 3.5" SAS2 (with LSI expander) / SATA3 HDD Bays
 • IT mode/HBA with support up to 122 Drives
 • 16 DIMMs support up to 512GB DDR3 1600MHz*  reg. ECC memory
 • 5x PCI-E 3.0 (x8) PCI-E 3.0 expansion slots
 • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
 • System management: Built-in Server management tool
(IPMI 2.0, KVM/media over LAN) with dedicated LAN port
 • 3 heavy duty fans w/ optimal fan speed control
 • 1280W Redundant Platinum Level Digital Power Supplies




 24 front + 12 rear HDDs



80Plus Platinum4U  High-density Double-sided Storage Server
 • Dual Intel® Xeon® processor E5-2600 family; Socket R (LGA 2011)
 • 36 Hot-swap 3.5" SAS2 (with LSI expander) / SATA3 HDD Bays;
Internal Drive Bracket supports 1x 3.5" or 2x 2.5"  drives
 • 24 DIMMs support up to 768GB DDR3 1600MHz*  reg. ECC memory
 • Hardware RAID controller & JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60
 • 3 (x16) PCI-E 3.0 and 1 (x8) PCI-E 3.0 expansion slots
 • I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
 • System management: Built-in Server management tool
(IPMI 2.0, KVM/media over LAN) with dedicated LAN port
 • 3 heavy duty fans w/ optimal fan speed control
 • 1280W Redundant Platinum Level Digital Power Supplies

High Data Performance SSD Cards

The  HDS-IA400D-M01 and HDS-IA800D-M01 PCI-E SSD provide a new way to maximize the  performance of data center and cloud storage while ensuring high reliability  and flexibility. With direct access to the server CPU through the PCI-E bus,  the bandwidth of PCI-E SSDs is increased up to 4X faster than SATA3 6Gb/s  SSDs. And by utilizing Intel® High Endurance Technology (HET), the PCI-E SSD  drives have a 30X longer lifetime than standard-endurance SSDs. The  HDS-IA400D-M01 and HDS-IA800D-M01 are the ultimate data center SSD for  today's data-rich world.





Benefits






PCI-E SSD Cards

Capacity:

400GB

NAND Flash Memory:

25nm Intel® NAND Flash Memory MLC with  High Endurance Technology (HET)

Bandwidth:

Sequential Performance - Read 1GB/s,  Write 0.75GB/s

Read/Write Lantency:

65 / 65 µs

Random IOPS:

Read (up to) - 90,000 IOPS, Write (up to)  - 38,000 IOPS

Interface:

PCI Express 2.0 x8 Half-Height,  Half-Length Add-in Card

Height and Weight:

69mm x 168mm x 19mm (H x L x W), 125g

Lifetime endurance:

7 PB

Power Consumption:

Active: > 25W (Typical), Idle: 8W  Typical

Operating Temperature:

0°C to 55°C



Capacity:

800GB

NAND Flash Memory:

25nm Intel® NAND Flash Memory MLC with  High Endurance Technology (HET)

Bandwidth:

Sequential Performance - Read 2GB/s ,  Write 1GB/s

Read/Write Lantency:

65 / 65 µs

Random IOPS:

Read (up to) - 180,000 IOPS, Write (up  to) - 75,000 IOPS

Interface:

PCI Express 2.0 x8 Half-Height,  Half-Length Add-in Card

Height and Weight:

69mm x 168mm x 19mm (H x L x W), 190g

Lifetime endurance:

14 PB

Power Consumption:

Active: > 25W (Typical), Idle: 12W  Typical

Operating Temperature:

0°C to 55°C

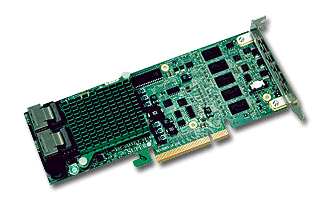

High Performance RAID Controller

Key Features


  • LSISAS       2108 8-port PCI-E SAS-2 controller

  • 8-port       (8 internal) 6Gb/s per port

  • Supports       RAID 0, 1, 5, 6, 10, 50, 60

  • On       board hardware IO Processor

  • 512MB 800MHz DDR2 on-card       cache

  • Advanced       array configuration and management utilities

  • Automatically       negotiates PCI-E link widths

  • Power       management support

  • Supports       1.5, 3.0 and 6.0 Gb/s SAS and SATA data transfer rates

  • Port       independent auto-negotiation

  • Supports       SSP, SMP, STP and SATA protocols

  • Optional       Battery Backup Unit for cached data protection (BTR-0018L-0000-LSI) -       operating temperature (Ambient) from 10C° - 45C°

  • OS       Support : Windows XP/2003/2008/Vista, RedHat Enterprise and SUSE Linux
